Exploring expansion vectors
Getting some test data
The test data used in this example is available at test_data.
Loading a PoseButcher object
from posebutcher import PoseButcher
butcher = PoseButcher.from_directory('test_data/butcher_2a_x0310_noP5P6')
Loading an example ligand
mol_df = PandasTools.LoadSDF('test_data/2a_bases.sdf')
mol = mol_df.iloc[1]['ROMol']
mol._Name = mol_df.iloc[1]['ID']
Exploring expansion vectors
You can use chop to inspect the protein pockets that the ligand’s atoms are in:
butcher.chop(mol, draw='2d', indices=True)

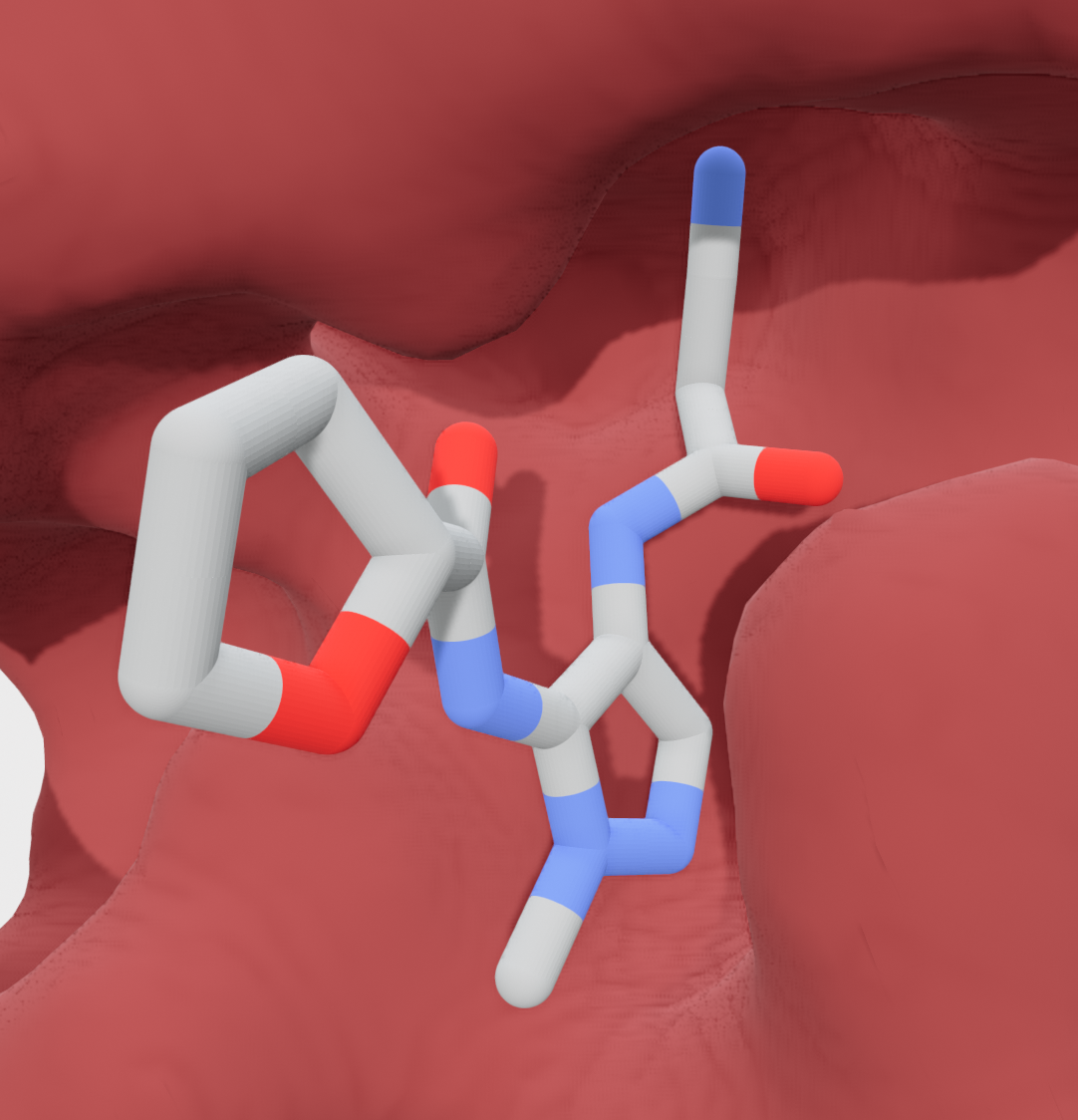

Replace ‘2d’ with ‘3d’ to open a 3D viewer of the protein, ligand, and pockets:
Exploring a single expansion vector

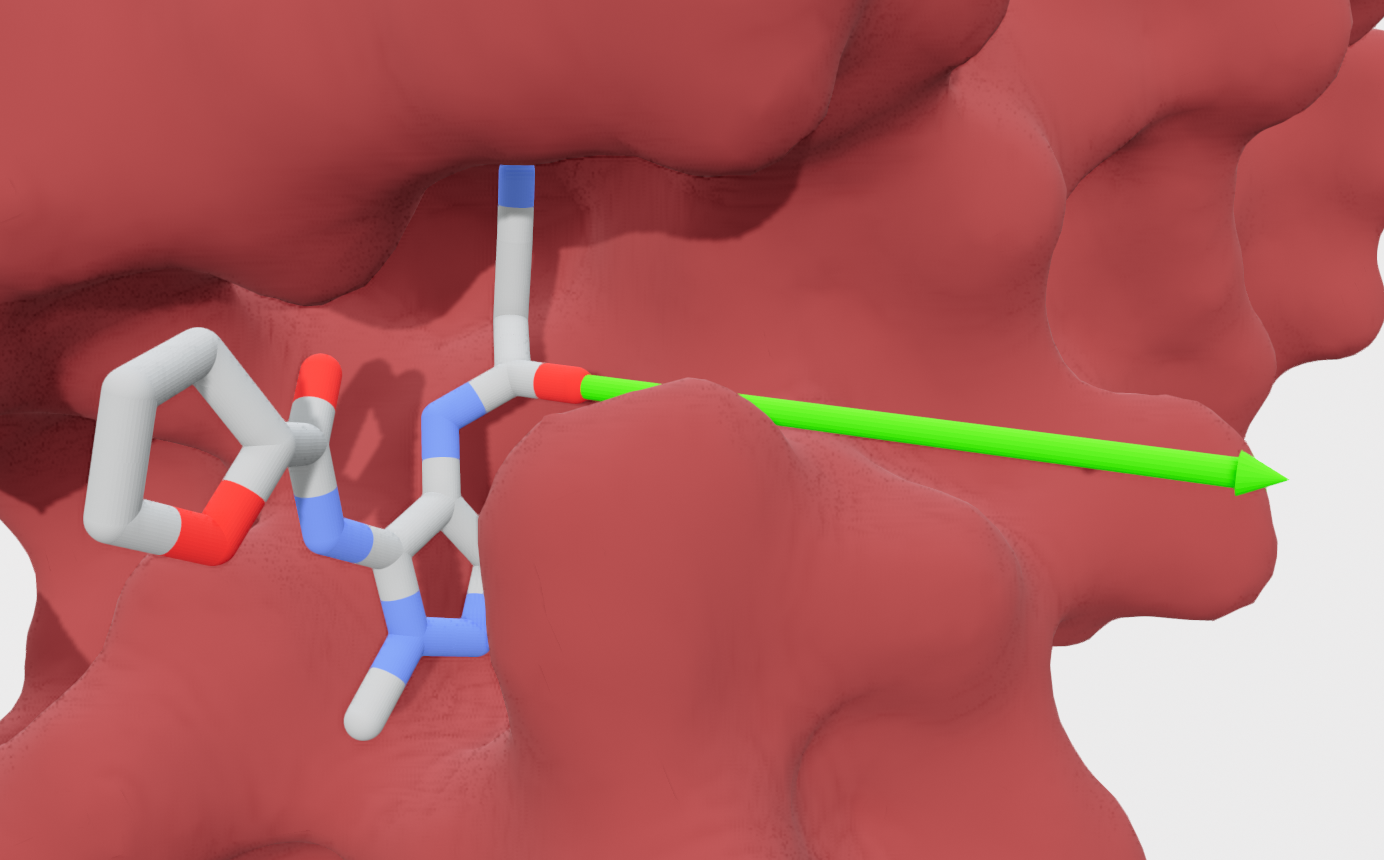

From the 3d chop output we might be interested in expanding from atom index 7 (oxygen in the P1 pocket, but pointing to P1’):
butcher.explore(mol, origin=7)
Pass draw = False to prevent the 3d output. The explore function will return:
{
'origin': ('GOOD', 'pocket', 'P1'),
'direction': array([-0.64592783, -0.37550155, -0.66466218]),
'intersections':
{
1.109: ('GOOD', 'pocket', "P1'"),
2.892: ('GOOD', 'pocket', "P2'"),
10.641: ('BAD', 'solvent space')
},
'first_intersection_distance': 1.109,
'new_pocket': True,
'last_intersection_distance': 10.641,
'destination': 'solvent space',
'max_atoms_added': inf,
'success': True
}
N.B. for large last_intersection_distance values (> 5.5) the max_atoms_added will always be infinity.
Exploring all expansion vectors

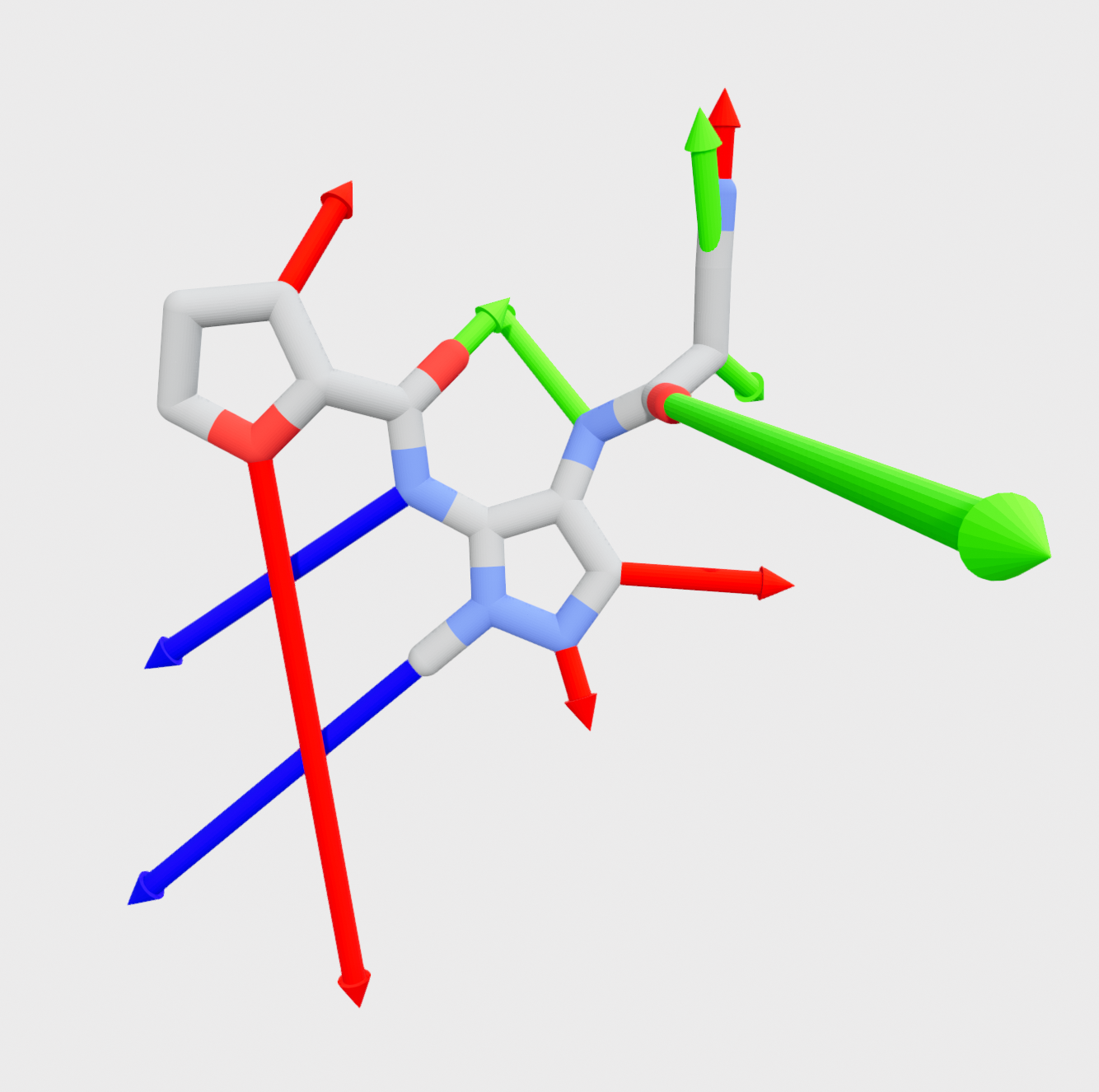

To explore all the expansion vectors don’t pass an origin parameter to explore:
butcher.explore(mol)
The output will be a list of all the output dictionaries for the vectors.
[{'atom_index': 0,
'origin': ('GOOD', 'pocket', 'P1'),
'direction': array([ 0.74649838, -0.49720134, -0.44218887]),
'intersections': {6.981: ('BAD', 'solvent space')},
'first_intersection_distance': 6.981,
'new_pocket': False,
'last_intersection_distance': 6.981,
'destination': 'solvent space',
'max_atoms_added': inf,
'success': True},
{'atom_index': 1},
{'atom_index': 2,
'origin': ('GOOD', 'pocket', 'P1'),
'direction': array([-0.04909108, -0.98667011, 0.15515206]),
'intersections': {1.699: ('BAD', 'protein clash')},
'first_intersection_distance': 1.699,
'new_pocket': False,
'last_intersection_distance': 1.699,
'destination': 'protein clash',
'max_atoms_added': 1,
'success': True},
{'atom_index': 3,
'origin': ('GOOD', 'pocket', 'P1'),
'direction': array([-0.7453661 , -0.22133142, 0.62884162]),
'intersections': {3.189: ('BAD', 'protein clash')},
'first_intersection_distance': 3.189,
'new_pocket': False,
'last_intersection_distance': 3.189,
'destination': 'protein clash',
'max_atoms_added': 7,
'success': True},
{'atom_index': 4},
{'atom_index': 5,
'origin': ('GOOD', 'pocket', 'P1'),
'direction': array([0.59644749, 0.77065031, 0.22438469]),
'intersections': {1.638: ('GOOD', 'pocket', 'P2'),
4.617: ('BAD', 'protein clash')},
'first_intersection_distance': 1.638,
'new_pocket': True,
'last_intersection_distance': 4.617,
'destination': 'protein clash',
'max_atoms_added': 7,
'success': True},
{'atom_index': 6},
{'atom_index': 7,
'origin': ('GOOD', 'pocket', 'P1'),
'direction': array([-0.64592783, -0.37550155, -0.66466218]),
'intersections': {1.109: ('GOOD', 'pocket', "P1'"),
2.892: ('GOOD', 'pocket', "P2'"),
10.641: ('BAD', 'solvent space')},
'first_intersection_distance': 1.109,
'new_pocket': True,
'last_intersection_distance': 10.641,
'destination': 'solvent space',
'max_atoms_added': inf,
'success': True},
{'atom_index': 8,
'origin': ('GOOD', 'pocket', 'P1'),
'direction': array([ 0.08383587, -0.26528064, 0.96051951]),
'intersections': {1.097: ('GOOD', 'pocket', 'P2'),
2.012: ('BAD', 'protein clash')},
'first_intersection_distance': 1.097,
'new_pocket': True,
'last_intersection_distance': 2.012,
'destination': 'protein clash',
'max_atoms_added': 1,
'success': True},
{'atom_index': 9,
'origin': ('GOOD', 'pocket', 'P2'),
'direction': array([-0.39798576, 0.74051448, -0.5415216 ]),
'intersections': {0.826: ('GOOD', 'pocket', "P1'"),
2.573: ('BAD', 'protein clash')},
'first_intersection_distance': 0.826,
'new_pocket': True,
'last_intersection_distance': 2.573,
'destination': 'protein clash',
'max_atoms_added': 3,
'success': True},
{'atom_index': 10,
'origin': ('GOOD', 'pocket', 'P2'),
'direction': array([-0.40351555, 0.88652452, -0.22638346]),
'intersections': {1.62: ('BAD', 'protein clash')},
'first_intersection_distance': 1.62,
'new_pocket': False,
'last_intersection_distance': 1.62,
'destination': 'protein clash',
'max_atoms_added': 1,
'success': True},
{'atom_index': 11},
{'atom_index': 12,
'origin': ('GOOD', 'pocket', 'P1'),
'direction': array([ 0.77108331, -0.40431042, -0.49189797]),
'intersections': {5.682: ('BAD', 'solvent space')},
'first_intersection_distance': 5.682,
'new_pocket': False,
'last_intersection_distance': 5.682,
'destination': 'solvent space',
'max_atoms_added': inf,
'success': True},
{'atom_index': 13},
{'atom_index': 14,
'origin': ('GOOD', 'pocket', 'P1'),
'direction': array([-0.45382675, 0.64855671, 0.61107731]),
'intersections': {0.87: ('GOOD', 'pocket', 'P2'),
1.543: ('BAD', 'protein clash')},
'first_intersection_distance': 0.87,
'new_pocket': True,
'last_intersection_distance': 1.543,
'destination': 'protein clash',
'max_atoms_added': 1,
'success': True},
{'atom_index': 15},
{'atom_index': 16,
'origin': ('BAD', 'solvent space'),
'direction': array([-0.22890259, 0.83199296, 0.50536256]),
'intersections': {2.628: ('BAD', 'protein clash')},
'first_intersection_distance': 2.628,
'new_pocket': False,
'last_intersection_distance': 2.628,
'destination': 'protein clash',
'max_atoms_added': 3,
'success': True},
{'atom_index': 17},
{'atom_index': 18},
{'atom_index': 19,
'origin': ('BAD', 'solvent space'),
'direction': array([ 0.21557068, -0.9479204 , 0.23447003]),
'intersections': {10.017: ('BAD', 'protein clash')},
'first_intersection_distance': 10.017,
'new_pocket': False,
'last_intersection_distance': 10.017,
'destination': 'protein clash',
'max_atoms_added': inf,
'success': True}]
